Portable Water Well Drilling Equipment For Sale

1. Dual motor rotating mechanism

2. Centralized operating system

3. Double cylinder propulsion system

4. Latest hydraulic technology, assorting with the high torque rotary hydraulic motor and the large diameter hydraulic cylinder propulsion, greatly reduce the labor intensity, shorten the auxiliary time, improve the efficiency of construction and engineering quality.

5. stable traveling system

6. Triple pump assemble

Contact Now

Product Details

Product Description:

1. Prepared with 55kw yuchai emblem turbocharged engine with robust power;

2. Patented layout compound increase, double cylinder lifting;

Three. every drilling rig is ready with a baffle on the principle arm to guard the oil cylinder;

4. Drilling rig chassis: expert excavator chassis, robust and sturdy, heavy-duty, extensive chain plate, the drilling rig uses rubber tracks, excessive flexibility, much less harm to difficult roads.

5. Parallel transmission layout, unbiased oil pump, sufficient strength, reasonable distribution, unique hydraulic gadget layout, simple upkeep and occasional price.

6. The operating system is simple and smooth to perform

7. Clean to load and unload at the truck

8. Twin structures may be added: 1. air power device with air compressor 2. mud pump device with mud pump

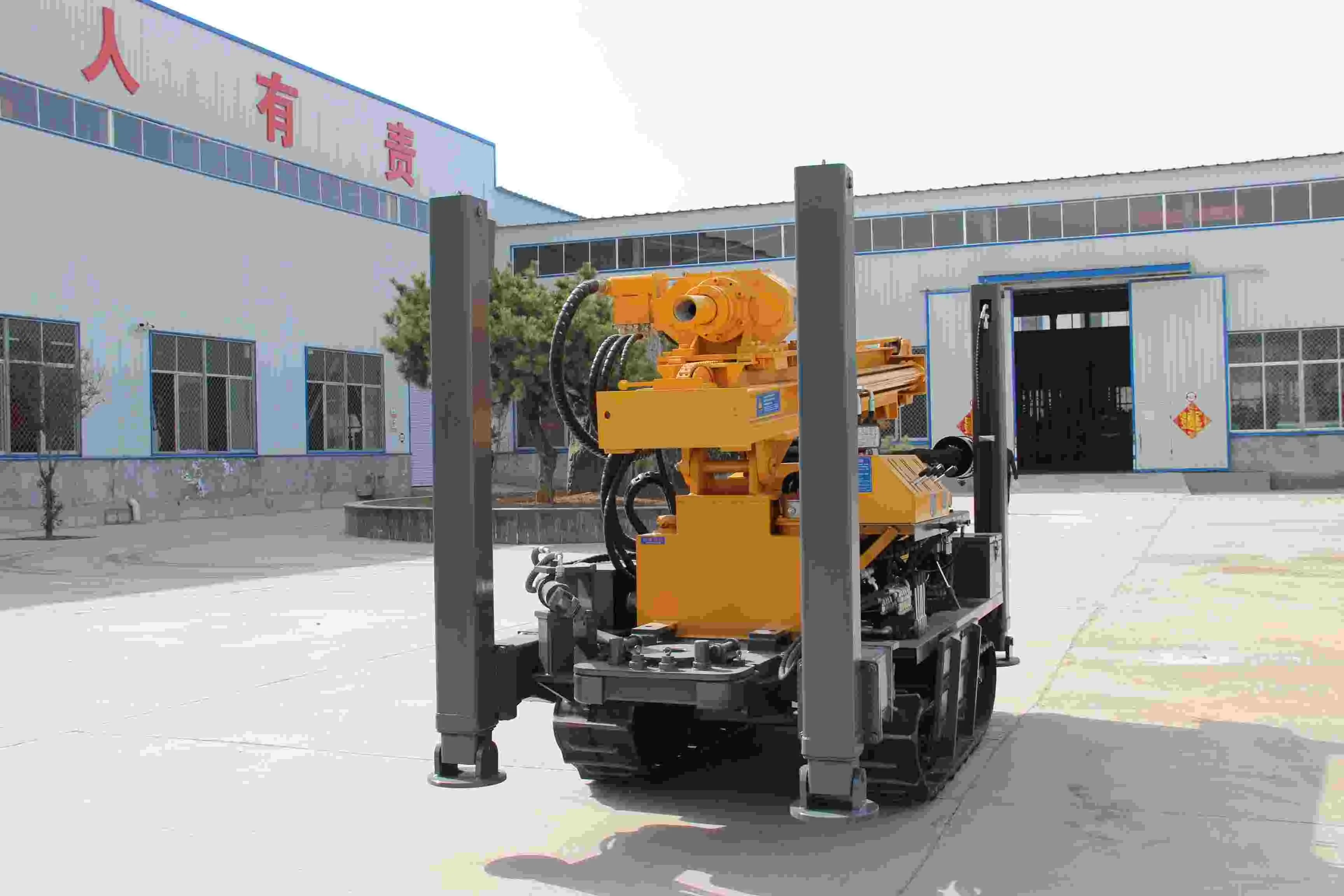

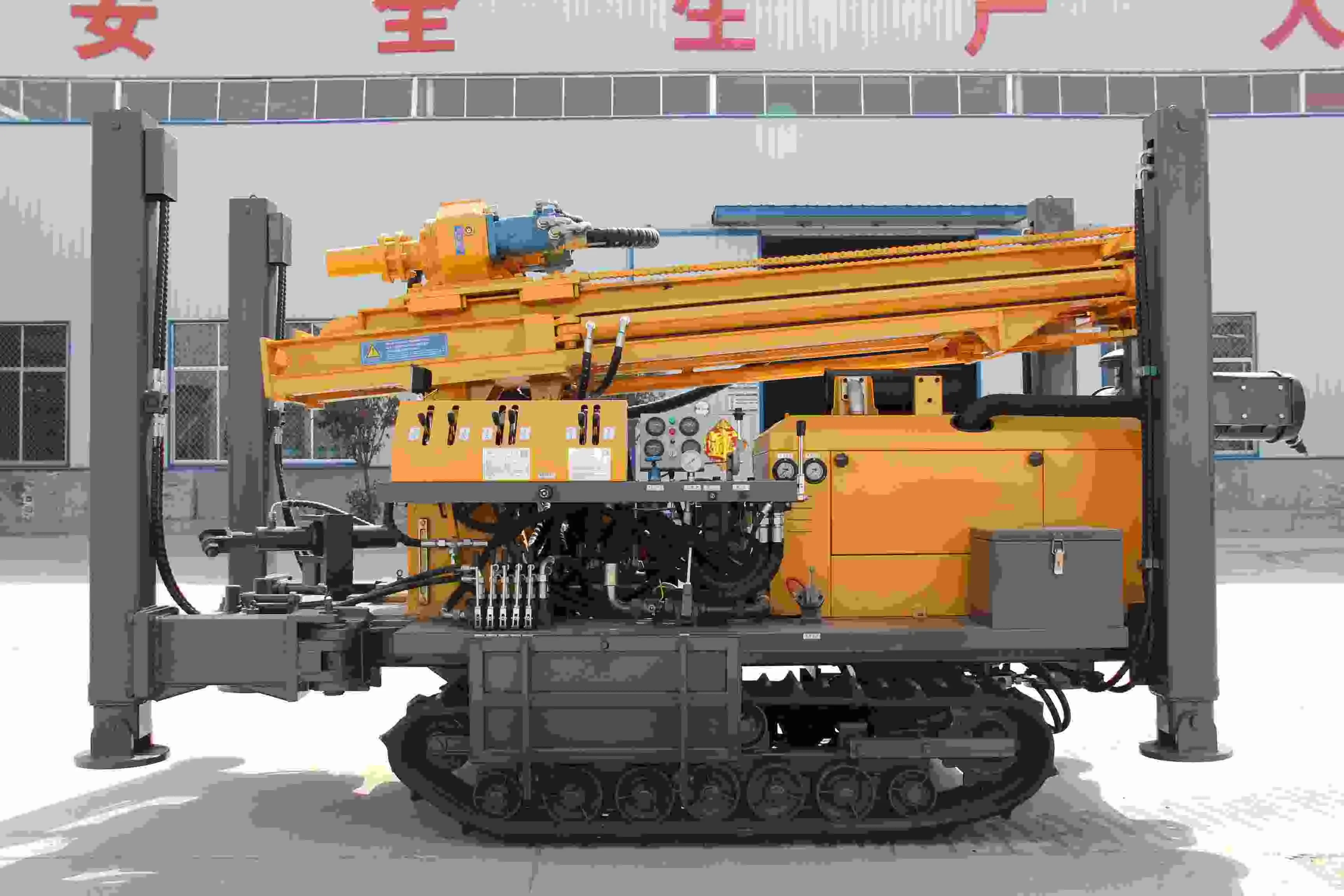

Product display:

drilling rig

Product Specifications:

The weight（T）	4.5	Drill pipe diameter（mm）	Φ76 Φ89
The hole diameter（mm）	140-254	Drill pipe length（m）	1.5m 2.0m 3.0m
Drilling depth（m）	180	Rig lifting force（T）	12
One-time advance length（m）	3.3	Rapid rise speed（m/min）	20
Walking speed（km/h）	2.5	Fast feeding speed（m/min）	40
Climbing angles（Max.）	30	Width of loading（m）	2.4
Equipped capacitor（kw）	55	Hoisting force of winch（T）	--
Using air pressure（MPA）	1.7-2.5	Swing torque（N.m）	3200-4600
Air consumption（m³/min）	17-31	Dimension（mm）	3950×1630×2250
Swing speed（rpm）	45-70	Equipped with hammer	Medium and high wind pressure series
The penetration efficiency（m/h）	10-35	High leg stroke（m）	1.4
The engine brand	Quanchai engine

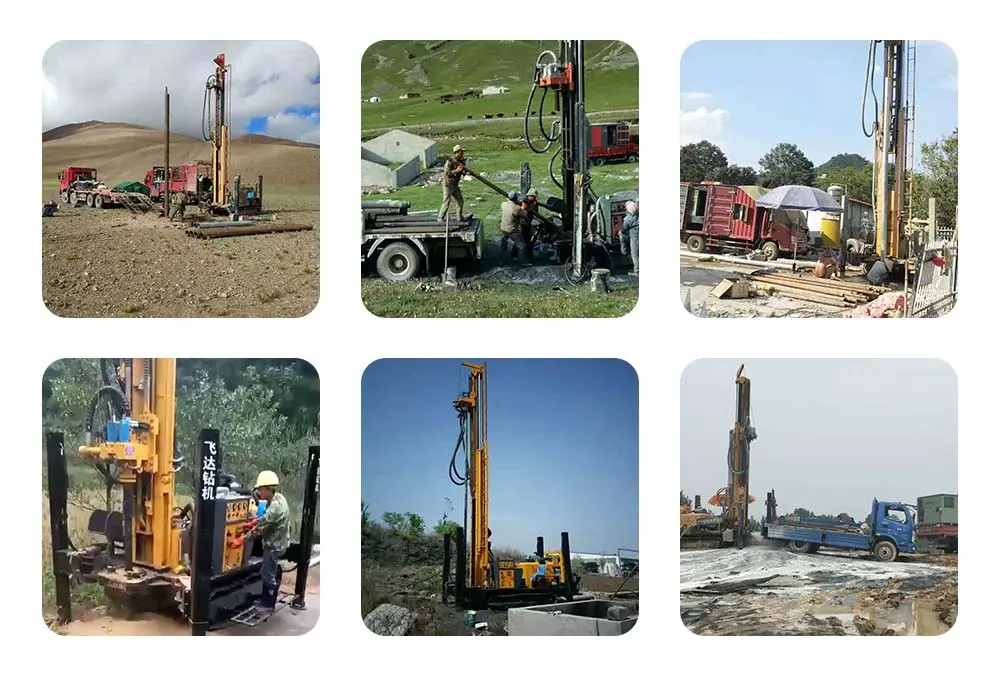

Application:

application

Packaging and Shipping:

Packaging and Shipping

Customer visit:

Customer visit

FAQ:

1.what can you buy from us?

Well Drilling Machine,Drilling Tools and Accessories,Screw Air Compressor，Excavator

2. How can we guarantee quality?

Always a pre-production sample before mass production;always final inspection is done before shipment；and our main unit has a one-year warranty, during which all damaged accessories can be replaced with new ones. We provide machine installation and operation videos.

3.Can you do OEM for me?

We accept all OEM orders,just contact us and give me your design.we will offer you a reasonable price and make samples for you ASAP.

4.Are you a manufacturer or trading company?

We are professional manufacturer with big modern factory in ShanDong,China.

5.Do you have any certificates for your machine?

All of our products coming with the certificates of CE,ISO9001、EPA.

6. what services can we provide?

Accepted Delivery Terms: FOB,CFR,CIF；

Accepted Payment Currency:USD,EUR,CAD,AUD,GBP,CNY;

Accepted Payment Type: T/T,L/C,D/P D/A,PayPal,Cas

LanguageSpoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
