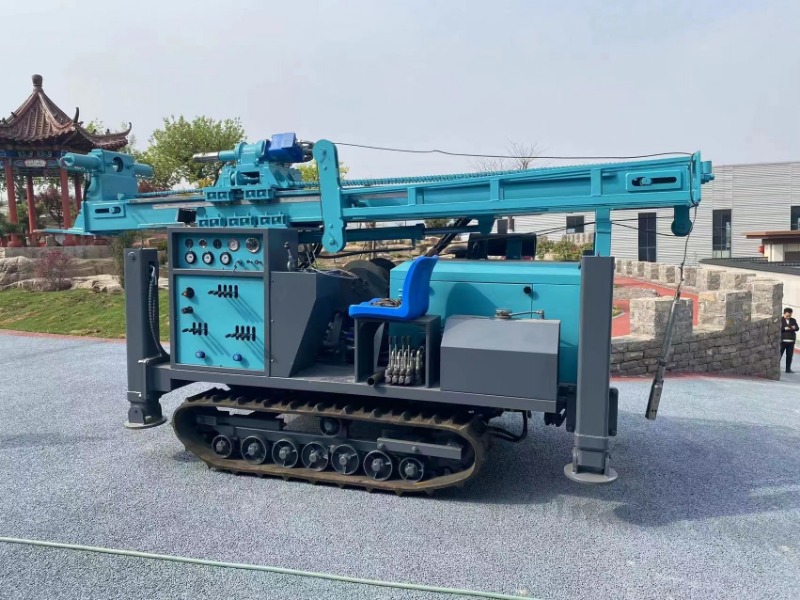

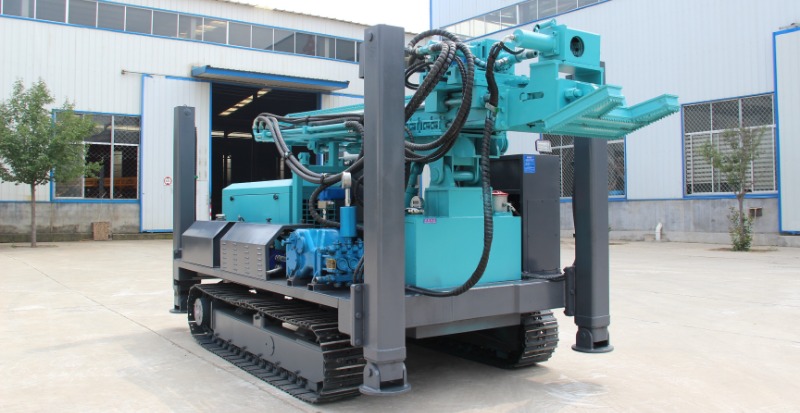

Core Drilling Rig
Advantages of Core Drilling Rig
1.Steel tracks are durable, last longer and protect the machine.
2.It can satisfy both straight and inclined drilling.
3.Large diameter of geological coring and exploration coring, small resistance, fast coring speed and high efficiency.
4.The thickened steel plate protects the drilling rig in all aspects, making it more stable and efficient.
5.Built-in mud pump makes work easier and saves user costs.
"FD series" integrates the modern day day technology of Feida, and can be customized according to patron needs to adapt to a extent of working environments. The hydraulic clamping laptop computer computer makes it everyday to whole drilling responsibilities with drilling angles of 45°-90°. The laptop laptop comes with a mud pump to make the work a lot less challenging and retailer man or woman costs. The drilling rig is geared up with a high-performance hydraulic oil pump to make the laptop computer computer pc laptop laptop computer extra tidy, increased bendy and improved stable.
The unique balanced pressure drilling system in the industry can effectively balance the weight of the drill string and precisely control the drilling pressure, so that the drilling rig can better adapt to the complex formation environment and the requirements of deep hole drilling technology.
Total Weight（T） | 6.5 |
Core Drilling Rig diameter(mm) | 60-110 |
Drill pipe specification/drilling depth | NTW/300 |
Drill pipe specification/drilling depth | HTW/200 |
Engine power(kw) | 75 |
Mud Pump Model | BW90-3 |
Gradeability(°) | 30 |
Walking speed（km/h） | 2.5 |
Drill pipe length（m） | 1.5 |
Lifting force(T) | 10 |
Swing speed(rpm) | 0-1200 |
Drilling angle(°) | 45-90 |
Dimension(mm) | 4800*1700*2280 |
